Ensuring pressure stability in your facility is a little like being a well-trained gymnast. Balance isn’t the most important thing. It’s the only thing.
Too little pressure, and end users complain they don’t have enough. Too much, and you waste energy. And both extremes threaten quality and potentially damage end-use equipment.
Ensuring Compressed Air Pressure Stability: Why (and Where) It Matters
A surgeon cutting through bone with a pneumatically powered drill. A pick-and-place operation populating a printed circuit board. A painting operation in an automotive assembly plant. A CNC center precisely machining a part.
These applications all have one thing in common: they rely on compressed air pressure stability. They need their compressed air to be steady and even. Rock-solid.
Compressed air pressure stability is critical in many compressed air applications, whether they are in an operating theater, a semiconductor fab or an electronics manufacturing plant. It is one of the key elements of compressed air performance.
Why Compressed Air Pressure Control Matters

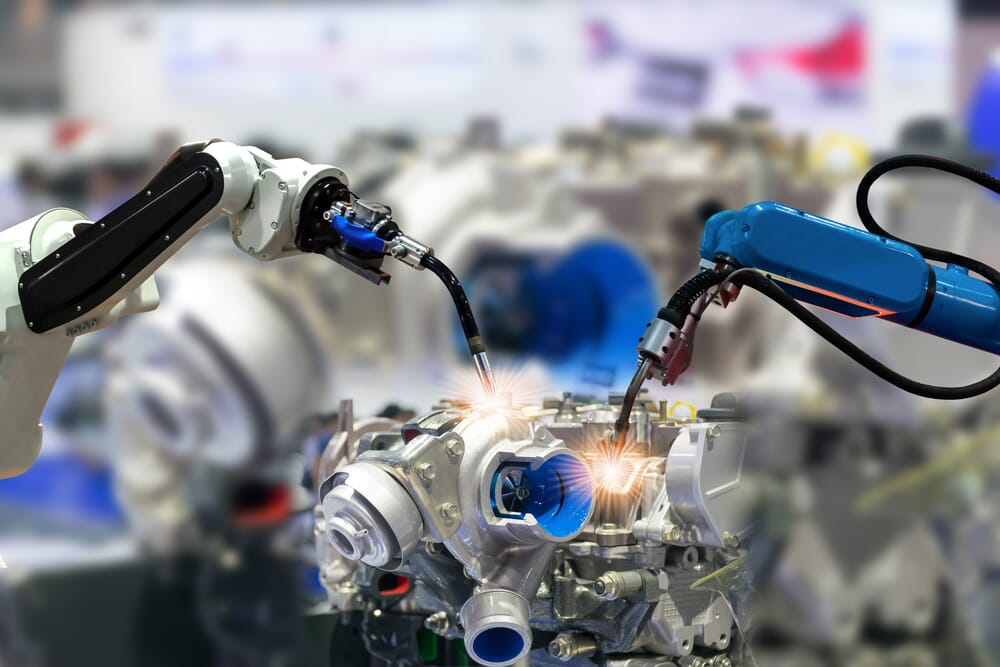

A robot without stable pressure will likely be out of tolerance. Surges or gaps in compressed air supply could mar an automotive finish. It could clog or even overspray, wasting energy and paint.
Uneven compressed air flows can result in rough coating, weak clamping, poor cuts and higher-than-needed pressure. It affects packaging, precision machining or anything healthcare-related.
Here’s why: pneumatics and pneumatic tools—especially the valves and actuators—are designed to operate in a very narrow pressure band.
If the pressure goes too high, you could have abrupt motion. Stress the design limits of seals or fittings. Wear out or even damage the equipment.
On the other hand, if pressure is too low, you could:
- Lose torque
- Lose speed
- Slow or stall moving cylinders
Long-term, you’ll waste energy, risk downtime and incur more product losses and scrap. Maybe even have safety issues.
Unfortunately, the typical response—boosting pressure—invariably will backfire. Making pressure even more unstable and wasting energy.
Common Causes of Poor Compressed Air Pressure Stability
Problems with pneumatic system pressure consistency can result from the following issues:
- Storage. When demand increases, the air is sucked out of the lines or the storage tank, causing a big swing in pressure. So, storage needs to be large enough to handle the biggest demand fluctuations. Most compressed air systems don’t have enough. Or it’s not in the right place.
- Sizing. All too often, companies add or change their equipment lineup without considering the impact on their compressed air systems. And we strongly recommend that you don’t oversize for the future.
- Pressure drop. Compressed air pressure drop anywhere in your system can result from a variety of mechanical issues, including clogged filters, pipe issues or malfunctioning switches, valves, fittings or regulators. Also, oil or water carryover can cause obstructions or restrictions in pipes.
- Leaks. Too many can cause pressure problems through the system. And cause unnecessary expense: poorly designed and maintained compressed air systems waste up to $3.2 billion in utility payments in the U.S. annually, according to the Compressed Air & Gas Institute (CAGI).
- Poor maintenance. Any number of maintenance problems can compromise pneumatic system pressure stability.
Scaling the Mountain of Compressed Air Pressure Control
Solving your compressed air pressure stability problems at times may seem insurmountable. But it’s not. It just requires careful analysis and attention to detail.
Compressed Air Pressure Stability Problems Are Not Insurmountable
Add Storage
By balancing the supply of air with the system’s demand, air compressor tanks can help accommodate surges in demand, acting as reservoirs during peak times.
Unfortunately, many facilities lack sufficient storage. The Compressed Air & Gas Institute recommends eight to ten gallons of storage for each CFM of flow from the largest compressor.
Not all that storage needs to be in the same place. First, we recommend deploying wet and dry storage tanks on both sides of your dryer.
- Before the dryer. Having a tank before the dryer helps stabilize the compressor, reducing rapid cycling and allowing enough air to be stored for the dryer when demand increases.
- After the dryer. Since the dryer needs time to remove moisture and reach the proper dew point, there is value in having a dry tank at the dryer’s output. After-dryer storage helps you meet spikes in demand from machines turning on or from special operations that deplete stored compressed air. As a result, the dryer will not be overburdened by the demand. As a bonus, the dry tank helps stabilize pressure downstream.
And, depending on your use, we also suggest point-of-use storage. We had one application in which compressed air was used every 30 minutes to expand bags before they were filled with sand. It was a great application for a point-of-use tank.
We’ve put together “A Quick Guide to Accurately Size Air Compressor Tanks.”
Correct Compressor Sizing Issues
Make sure your compressor is sized correctly and you have the correct amount of compressor capacity to meet the needs of your application.
While undersizing may cause some of the low-pressure issues mentioned above, you also want to make sure you don’t add too much capacity. As we’ve pointed out many times in this blog series, oversizing is the leading cause of rapid cycling, which causes maintenance nightmares, equipment failures and downtime.
For more information on properly sizing your compressor, see our blog post, “Everything You Need to Know About Sizing Industrial Air Compressors for Manufacturing.” Or download our white paper, “Demystifying Air Compressor Sizing.”
Eliminate Leaks and Artificial Demand
Repair leaks and make sure to eliminate other forms of artificial demand. For a detailed plan to eliminate leaks, read our blog post, “Eight Causes of Compressed Air Leaks and How to Find Them.”
In addition, we encourage you to take a hard line on artificial demand, which is anything that is not an authorized use. Examples include air leaks, high header pressure problems and even workers blowing dust off their clothes at the end of a shift. For more details, read the blog post, “Eliminating Artificial Demand.”
Add Controls
A control system plays a pivotal role in ensuring your air compressor runs successfully. Over the years, we’ve seen that a well-planned controls approach is critical to optimizing the operation of your compressed air system, smoothing out the demand spikes and ensuring compressed air pressure stability.
Specific control techniques to consider include:
- Flow control. Pressure-flow control monitors the pressure at the control valve and releases air from the air receiver tanks as needed to keep the system stable.
- Modulation. Modulation takes the next step, changing the amount of air your compressor processes by opening or closing its inlet valve.
- Variable-speed and variable-frequency drives deliver header pressure within 1 PSIG. They provide soft starts and stops with very little inrush current and also save energy, reduce costs, qualify for rebates and avoid utility peak amp charges. More on “The Benefits of Installing Variable-Speed Compressors.”
Find out “Everything You Need to Know About Compressed Air Controls.”
Correct Compressed Air Pressure Drop
As noted, many pressure drop issues can be addressed by cleaning out clogged filters or looking for pressure inhibitors in pipes. For example, a black-iron pipe might be accumulating corrosion material that obstructs the free flow of air.
In addition, remove any oil or water carryover that causes obstructions or restrictions in pipes.
Read our recent blog post for more details on the causes and remedies for pressure drop.
Long-term prevention, of course, requires greater attention to maintenance.
Double Down on Maintenance
A comprehensive, well-planned maintenance program helps ensure compressed air pressure stability. Key elements include:
- Filters. Make sure filters are clean. Also, make sure to maintain coalescing water filters and filters in your dryers. And, when you replace them, make sure to use OEM parts to ensure that filters and separators work as designed.
- Drains. Make sure drains are clear.
- Pressure band. Adjust the pressure band if rapid cycling is occurring.
A related issue is preventing leaks: when was the last time you conducted a leak study? Keeping leaks under control is critical to compressed air pressure stability. For more information on fixing leaks, visit our recent blog post, “Eight Causes of Compressed Air Leaks and How to Find Them.”
And, for more details on maintenance in general, read our post, “Ten Need-To-Know Rotary Screw Air Compressor Maintenance Tips.” Or download our white paper, “Air Compressor Maintenance: Ultimate Guide and Checklist.”
For compressed air pressure monitoring, you can use point-of-use pressure sensors or monitors at specific points in the system. A good example would be to monitor discharge pressure.
The Goal: Narrowest and Lowest Pressure Band
You want to maintain your pressure band as narrow and low as possible. Doing so will add up to better compressed air pressure stability, lower energy use and happier end users.
Admittedly, keeping that pressure band as tight as possible is as much an art as a science. In most cases, it requires help from a compressed air professional you trust. A source of compressed air expertise whose specific talent is providing this critical power source to your plant. Not just blowing hot air.
The right compressed air professional can analyze what you need and help you keep your system pressure within the narrow band your applications require.
The first place to start is with an audit. A compressed air professional can quickly identify short-term fixes as well as long-term system design issues to ensure your demand side gets the stable source of compressed air it requires.
Kaishan USA works with a nationwide network of independent distributors, who can provide on-site help and consultation as needed. These factory-trained air compression experts can service your air compressor system without a problem. And they have staff skilled in advanced technology.
With factory-trained technicians and a deep understanding of industrial applications, they help maximize efficiency and minimize downtime. So, when you buy through Kaishan, you’re getting more than a product—you’re getting a local partner who cares about your business and wants to see it succeed.
Key Takeaways
- Many applications need compressed air pressure stability. They need their compressed air pressure to remain steady.
- Pneumatics and pneumatic tools—especially the valves and actuators—are designed to operate in a very narrow pressure band.
- Uneven compressed air flows can result in uneven coating, weak clamping, poor cuts and higher-than-needed pressure in industries as varied as packaging, precision machining and anything healthcare-related.
- Problems with pneumatic system pressure consistency can result from issues with storage, sizing, pressure drop, leaks or maintenance.
- Remedies include adding storage, resolving sizing issues, eliminating leaks, adding controls, addressing compressed air pressure drop or increasing maintenance.
- The goal is to keep your pressure band as narrow and as low as possible.
Compressed Air Pressure Stability in Your Area
We partner with independent, local distributors because they offer expert guidance, faster response times and personalized support tailored to your needs. You get a long-term partner, ensuring you get the right system, reliable service and quick access to parts when you need them most. Find a compressed air professional near you. Or contact us directly.
Further Reading
“A Quick Guide to Accurately Size Air Compressor Tanks.” We provide guidance on how much storage you need and where you need it.
“Air Compressor Maintenance: Ultimate Guide and Checklist.” A white paper with everything you need about air compressor maintenance.
Frequently Asked Questions
The key is understanding your specific application requirements. We recommend working with a compressed air specialist to determine the appropriate pressure range and acceptable fluctuation limits for your facility's unique needs.
Several signs indicate pressure stability issues:
- Equipment performance varies: Tools operate inconsistently, robotic movements are erratic or paint application is uneven
- Frequent compressor cycling: Your compressor turns on and off excessively rather than running at a steady state
- High energy bills: Unexpected increases in your compressed air energy consumption without corresponding increases in production
- Increased maintenance costs: More frequent equipment repairs or replacement of pneumatic components
- Quality issues: Increased defects, rework or scrap in manufacturing processes
- Visible pressure gauge fluctuations: Pressure readings bounce around rather than staying stable
If you're experiencing any of these symptoms, scheduling a professional system audit is your next step.
For every 2 PSI drop in system pressure, energy consumption increases by approximately 1 percent. While that might sound modest, consider that a typical industrial facility might experience 10-20 PSI of total pressure drop from the compressor to the point of use. That could mean an additional 5%-10% energy consumption just to compensate for pressure losses.
Over the course of a year, this wasted energy translates into thousands of dollars in unnecessary operating costs. Addressing pressure drops through leak repair, proper piping design and system optimization typically pays for itself within 12 to 24 months through energy savings alone.
Yes, in most cases they are. Variable-frequency drive compressors maintain pressure stability more effectively than fixed-speed compressors because they can ramp up or down smoothly to match actual demand, rather than cycling on and off.
The benefits include:
- Better pressure stability: VFD compressors respond continuously to demand changes, maintaining more consistent pressure
- Significant energy savings: VFDs typically reduce energy consumption by 20-35 percent compared to fixed-speed compressors with traditional controls
- Reduced equipment wear: Continuous operation with variable output is easier on equipment than constant cycling
- Quieter operation: VFDs run more smoothly and quietly than fixed-speed units
The higher upfront cost of a VFD compressor is typically recovered within 3-5 years through energy savings, making it an attractive long-term investment.
We recommend a comprehensive system audit at least every 2-3 years, or whenever you notice signs of pressure instability or performance issues. More frequent audits (annually) are appropriate for:
- Facilities in regulated industries like healthcare or semiconductors
- Large facilities with complex distribution systems
- Operations where compressed air is critical to production
- Facilities experiencing high energy costs or frequent equipment failures
In addition to comprehensive audits, implement quarterly or semiannual leak-detection and inspection programs. Many facilities find that regular, proactive monitoring catches problems early, preventing larger issues and maintaining optimal system performance.
There are several effective methods:
- Ultrasonic leak detectors: These handheld devices detect the high-frequency sound produced by compressed air leaks. They're highly effective at finding leaks that might otherwise be missed, including internal leaks in valves and equipment.
- Soapy water method: Apply soapy water to suspected leak areas. Bubbles will form where air escapes. This is low-tech but effective for obvious leaks.
- Pressure drop testing: Isolate sections of your system and monitor pressure drop over time. Significant drops indicate leaks in that section.
- Thermal imaging: Some leaks can be detected using infrared thermography, which shows temperature differences created by escaping compressed air.
- Professional leak audits: Bring in specialists with advanced equipment to conduct a comprehensive, facility-wide leak-detection survey.
A good practice is to combine methods. Start with ultrasonic detection for a facility-wide survey, then use soapy water or other methods to confirm findings before repair.
Absolutely. In many cases, significant improvements can be achieved through targeted upgrades and operational changes:
Quick wins (often implementable within weeks):
- Detect and repair leaks
- Clean or replace filters and dryer cartridges
- Check and adjust pressure settings
- Inspect and repair piping
Medium-term improvements (implementable within months):
- Install pressure monitoring and controls
- Upgrade to a variable frequency drive controller
- Optimize piping layout to reduce pressure drops
- Add storage capacity if needed
Longer-term investments (implementable within 1-2 years):
- Replace aging compressors with modern, efficient models
- Redesign your distribution system for optimal performance
- Implement comprehensive monitoring and predictive maintenance systems
Start with an audit to identify the highest-impact improvements for your specific situation. Often, you can achieve 50-70 percent of the benefits of a complete system overhaul through targeted improvements at a fraction of the cost.
Listen to the Podcast Version
The Balancing Act of Pressure Stability
Welcome to the show everybody! I'm Jason Reed, here with Lisa Saunders. And Lisa, I want to start today with a scenario from the shop floor that drives me absolutely nuts. Picture a robotic arm on an automotive assembly line, programmed to lay down a perfect, microscopic weld or spray a flawless clear coat. Suddenly, the pressure in the main air header drops by just ten percent. What happens?Well, if that pressure drops, that robot is immediately out of tolerance. In a paint booth, a pressure dip means the paint clogs, or worse, oversprays and ruins a sixty-thousand-dollar vehicle finish. It's the same story with pick-and-place machines populating circuit boards or a surgeon using a pneumatic bone drill. These systems aren't forgiving. They don't just need air; they need rock-solid, unwavering pressure stability.
Exactly. But here is what happens in nine out of ten plants when a machine operator complains about low pressure. The maintenance tech walks over to the compressor controller and just cranks the target pressure up by ten or fifteen PSI. They think, hey, problem solved, right?
Oh, the classic "crank it up" band-aid. It's a massive, expensive trap, Jason. Here is the math: according to the Compressed Air and Gas Institute, for every two PSI you raise your system pressure, your compressor's energy consumption goes up by about one percent. If you boost your system by ten PSI to compensate for a local drop, you just tacked five percent onto your utility bill for absolutely no good reason.
And that's just the energy side. Think about what that excess pressure does to the downstream equipment. Pneumatics, especially your valves and actuators, are designed to operate in a very narrow pressure band. When you spike that pressure, you get violent, abrupt motion. You blow out seals, stress the design limits of your fittings, and drastically shorten the life of your tools.
Right, and then when the pressure swings the other way and drops too low, you lose torque, you lose speed, and your moving cylinders literally stall mid-stroke. You are bouncing between tearing your equipment apart at high pressure and halting production at low pressure. Boosting the compressor discharge pressure doesn't stabilize the system; it just creates wilder swings and guarantees you'll be throwing away money on scrap and replacement parts.
Practical Steps to Stabilize Your System
So, Jason, if cranking up the pressure is the wrong move, how do we actually fix the stability issue on the plant floor? Where is the air disappearing to?It usually comes down to storage, or the lack thereof. Most plants do not have enough receiver tank capacity. CAGI recommends eight to ten gallons of storage for every single CFM of flow from your largest compressor. But the real secret is where you put that storage. You need wet and dry storage tanks on both sides of your air dryer.
Wait, on both sides? Why split them up like that?
Okay, think about it. If you put a wet tank before the dryer, it acts as a buffer. When a massive demand spike hits downstream, that wet tank absorbs the initial hit so the compressor doesn't start rapid cycling. It also gives the air a chance to cool and drop out some moisture before it even enters the dryer. Then, you put a dry tank after the dryer. This dry storage meets those sudden, massive spikes from machines turning on without overloading the dryer's capacity, meaning you don't get moisture carryover down the line.
Ah, that makes sense. Because if you overwhelm the dryer, you get water in your pipes, which leads to corrosion, rust scale, and clogged filters. And those clogged filters are a primary source of local pressure drops. You could have one hundred PSI at the compressor, but if you're forcing air through a dirty, oil-logged filter, you might only get eighty PSI at the tool.
And that pressure drop forces the compressor to work harder, which brings us back to energy waste. Let's not forget leaks, either. The Compressed Air and Gas Institute estimates that poorly maintained systems waste up to three point two billion dollars in utility payments in the US every year. A single micro-leak on a fitting might seem quiet, but multiply that by fifty across a facility, and you are literally throwing cash into the wind.
So we fix the leaks, we clean the filters, we get our wet and dry storage balanced. What about the compressors themselves? How do we stop them from over-reacting to system demands?
That is where advanced controls and variable-speed rotary screw air compressors come into play. A traditional fixed-speed unit is either fully on or fully off, which causes those constant pressure swings. But a variable-speed drive compressor dynamically ramps its motor speed up or down to match your exact demand in real-time.
Right, and because it modulates continuously, a VFD compressor can hold your header pressure within one PSIG of your target. One PSI! Compare that to the typical ten or fifteen PSI swing of a fixed-speed unit, and the energy savings alone are usually twenty to thirty-five percent. Plus, you avoid those massive inrush current charges from the utility company because you aren't constantly hard-starting a giant motor.
Exactly. At the end of the day, keeping your pressure band as narrow and as low as possible is the ultimate goal. It protects your tools, keeps your product quality consistent, and stops your energy bill from skyrocketing. It is a balancing act, sure, but if you focus on storage placement, clean up your leaks, and use smart controls, you stop fighting the system and start running it.
Well said, Jason. That's all the time we have for this quick take. Thanks for joining us on The Big Dog Podcast. We'll catch you on the next one.
Keep it stable, guys. See ya.
